Laser marking provides durability and high marking speeds that no other technology can match. Manufacturers can now set permanent markings into parts and products with incredible accuracy, all thanks to laser technology. Laser cutting, laser engraving, color marking, and other processes are now feasible owing to the introduction of the mopa fiber laser marking machines. If you are looking for a premium quality laser marking machine, get it from Micro Industrial Solutions. With years of expertise in the field of Lasers and their applications, we provide laser marking tools to help the rising laser industry. We are one of the Fiber Laser Marker Manufacturers in India, offering excellent marking solutions to our precious clients.

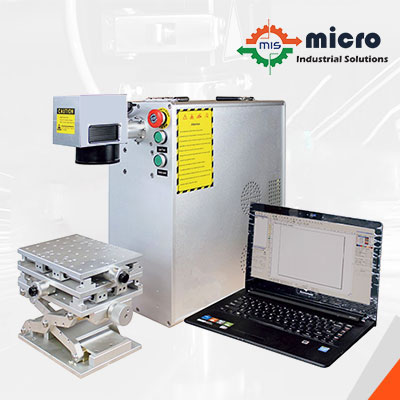

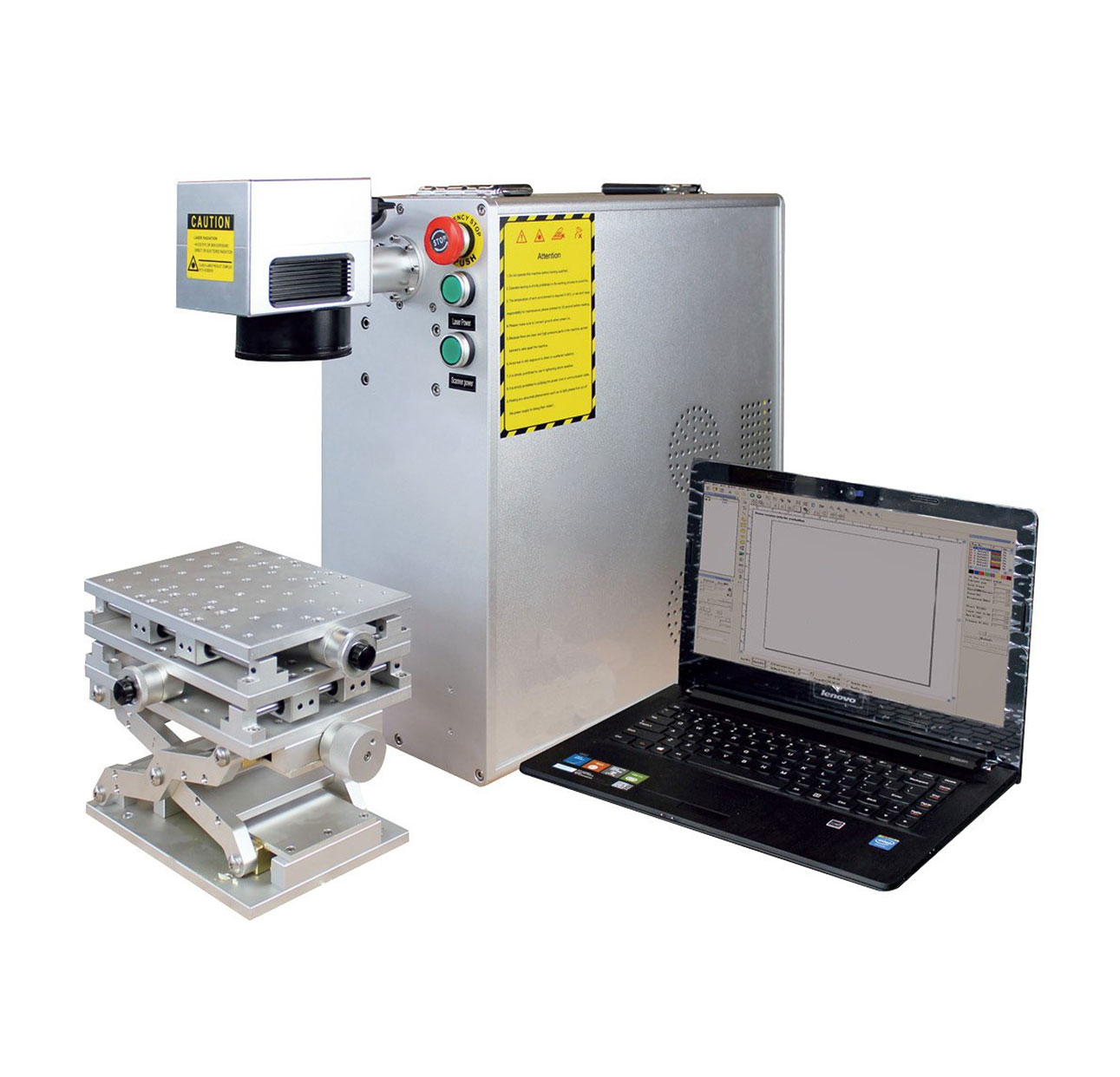

Introducing a compact and lightweight portable fiber laser marker equipped with a high-speed laser Galvo scanner. You have the option to choose between the IPG laser and Raycus laser. Our laser marker is available at an affordable price in various power options such as 10W, 20W, 30W, and 50W. It is designed specifically for marking on metal surfaces.
With its small size and lightweight, this portable fiber laser marking machine offers convenience and ease of use. It features an all-in-one structure, a manual focusing system, and a user-friendly interface, ensuring a hassle-free operation. Whether you require mobility for your laser marking tasks, our machine is designed with flexibility in mind. You can easily carry it wherever you need to mark your projects, giving you the freedom to work on the go.
Features of Fiber Laser Marker
- Firstly, it provides a superior laser beam quality, surpassing that of its counterparts. This results in higher precision and accuracy in marking.
- Additionally, the system exhibits a high electricity laser exchange ratio, consuming significantly less power compared to other models.
- With a gross electricity consumption of less than 500W, it operates at only 1/10th of the consumption of YAG lasers. This not only reduces energy costs but also contributes to environmental sustainability.
- The fiber laser engraving marking system is designed for hassle-free maintenance, ensuring a long working life and minimal downtime.
- It is well-suited for any working environment, adapting to diverse conditions without compromising performance.
- The remarkable marking speed is 2-3 times faster than traditional marking machines. This swift operation enhances productivity and efficiency, allowing for increased output within shorter timeframes.
- The portable machine’s marking software offers user-friendly operation. It supports a wide range of file formats such as CorelDRAW, AutoCAD, Photoshop, and PLT, as well as PCX, DXF, and BMP.
- It allows for the direct adoption of SHX or TTF files. The software includes functions like auto-coding for sequence numbers, batch numbers, dates, barcodes, and more, providing convenient options for customization.
|
Model |
MIS-LF | ||||
| Laser power | 20W | 30W | 50W | ||
| Laser wave length | 1064nm | ||||
| Standard marking area | 110*110mm | ||||
| Optional marking area | 150*150 customerised available | ||||
| Minimum character | 0.15mm | ||||
| Marking speed | ≤7000mm/s | ||||
| Marking depth | 0.01~1mm | ||||
| Repeat frequency | 20KHZ~80KHZ | ||||
| Output laser beam quality | M²≤2 | ||||
| Focus spot diameter | < 0.01mm | ||||
| Control interface | Standard USB port | ||||
| Graphic format supported | BMP,JPG,AI,PLT,DST,DWG ETC. | ||||
| Marking format | Text,symbols,graphics,images,bar codes,two-dimension bar. date marking,batch number,serial number etc. | ||||
| Operating temperature | 0-45°C | ||||
| Cooling way | Built-fan for air cooling | ||||
| Working voltage | 220V-50Hz(single phase)or 110V-60Hx(single phase) | ||||
| Computer | Including laptop computer per set(software installed) | ||||
| Laser markingsoftware | Ezcad(English version)(the other optional software please contact us) | ||||
| General power | <0.5KW | ||||
| Working environment | Clean and dust-free or dust less | ||||
| Working condition | 5%~75%,free of condensed water | ||||
| Optional device |
Rotary marking attachment ;X/Y adjustable table |
||||
Suitable Materials
- This machine is compatible with various materials such as metals, engineering plastics, electroplated coatings, spray coatings, plastic rubber, epoxy resin, ceramics, and more.
Suitable Industries
- This machine finds applications in industries such as phone cases, light-transmitting keys, electronic parts and components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tool accessories, glasses and watches, jewelry, automotive parts, buckles, kitchenware, and stainless steel products. To determine if this machine is suitable for your specific business needs, please get in touch with us.
