Many firms, particularly those in the automotive, aerospace, and energy industries use highly-efficient handheld laser marking machines for efficient and effective marking. These machines use laser etching technology to mark objects made of metal and some plastic materials, integrating their features and functionalities. Handheld marking machines are well-liked for their mobility and compact size.
If you’re searching for Handheld Laser Marking Machine Manufacturers in India that will take the time to understand your industrial application and match you with the finest technology for the job, you are at the right place.
They create permanent and readable marks on a range of metals and other materials. Being one of the Handheld Laser Marking Machine Suppliers in India, we offer devices that are lightweight and portable, allowing you to mark any part and product with exceptional speed and accuracy. Our marking machines are made using unique concepts, high-quality materials, and cutting-edge technology under the supervision of a knowledgeable and experienced team. All these machines are created according to well-defined worldwide quality norms and standards. You can buy handheld laser marking machines if adaptability is crucial in your application, as they have the most possibilities for different effects.

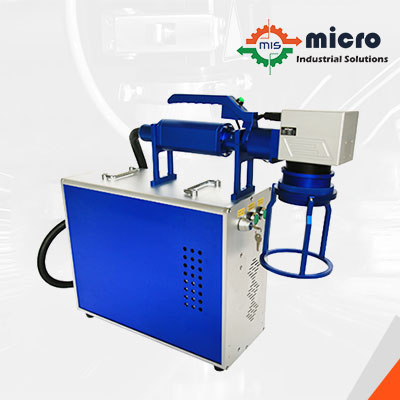

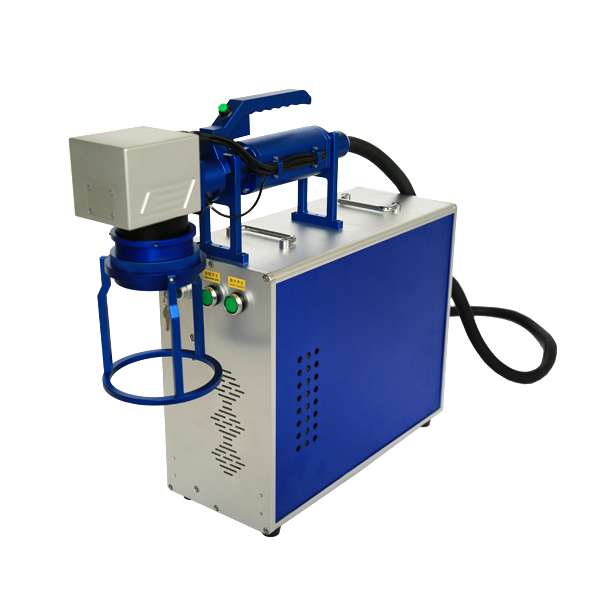

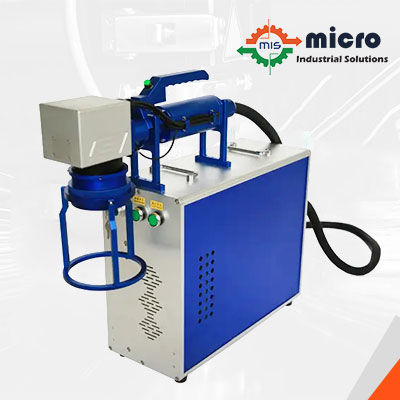

A small and adaptable handheld fiber laser marking machine was created to address the issue of laser branding existing huge items. The entire machine, as well as the size of the computer host box, are tiny and handy, allowing for handled operations in any direction on big mechanical components for laser marking, making them ideal for individual processing operations. Suitable for engraving and marking on most non-metallic materials.
Product Features
- Split design and portable.
- High-quality laser source with good spot quality.
- Homogeneous optical power density.
- Consistent output optical power, no light leakage, and high anti-reflection.
- Using a high-speed scanning galvanometer,
- Compact size, quick, and stable.
- Simple to use and run.
- A high-quality laser scanning system increases marking speed.
- Use a sophisticated fiber generator with a lifespan of up to 100,000 hours.
- High Precision Re-positioning accuracy is 0.003mm.
- Power consumption is lowered by 3-10 times when compared to the YAG laser.

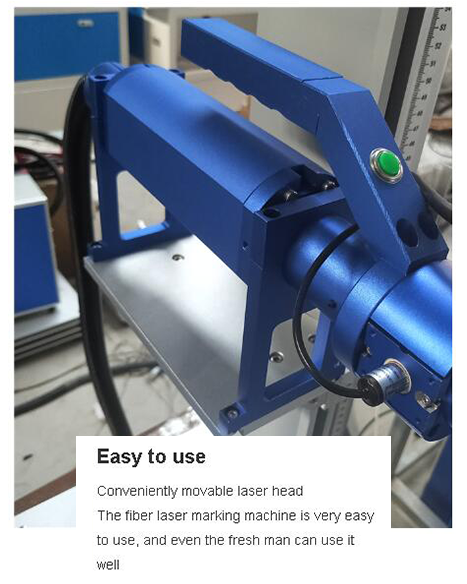

- The fiber laser marking machine is quite simple to use, and even a novice can do it successfully.
| Type | MIS-LFH-20 / MIS-LFH-30 |
|---|---|
| Power | 20W /30W/50W |

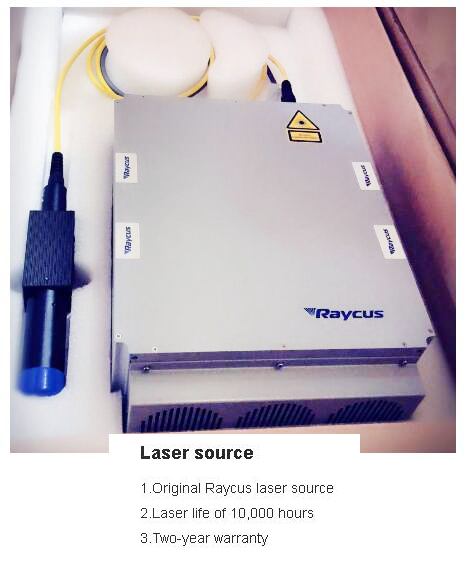

| Laser Brand | Raycus (Maxphotonics/IPG Optional) |
| Marking Area | 110mm*110mm |
| Optional Marking Area | 110mm*110mm/150mm*150mm/200mm*200mm |
| Marking Depth | ≤0.5mm |
| Marking Speed | 7000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Life-span of Fiber Laser Module | 100 000hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7–32/64bits / W8–32/64bits |
| Cooling Mode | Air cooling–Built-in |
| Temperature of Operation Environment | 15℃~35℃ |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Package Dimension | 720mm x 460mm x 660mm |
| Gross weight | 65KG |
