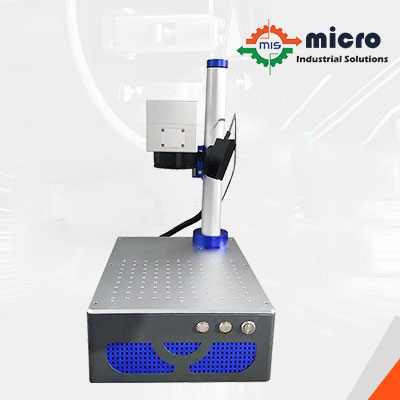

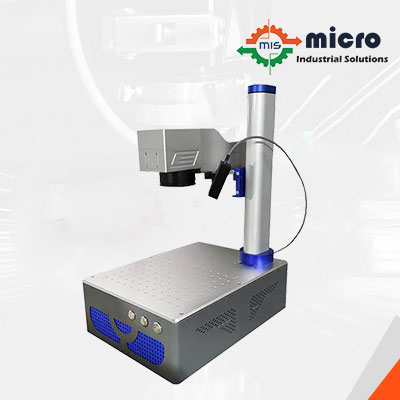

High-Powered Metal Laser Engraving Machines are Available at a Reasonable Cost
The integrated structure, compact and flexible, can cope with different environmental needs, fibre laser output laser, electro-optical conversion rate, automatic focus marking, air-cooled cooling, less power consumption, small size, long operating life, is a new environmentally friendly energy-saving laser marking equipment.
Laser marking has been gaining huge popularity among manufacturers and suppliers who deal in the metal industry. Complex designs can now be added to metal sheets in minutes, all thanks to high-powered Metal Laser Engraving Machines. Many industries benefit from better metal cutting and engraving efficiency as well. Portable metal laser engraving machines create deep and permanent marks that withstand wear and most surface treatments. VIN marks and shot blast-resistant markings are two examples of metal laser engraving.
Choose the High-Quality Dot Peen Marking Machines From Us!
You can mark different metals with these laser engraving machines. The only laser marking process that produces a high contrast on zinc components is laser etching. It can be used with any zinc alloy, including brass. You can use our brass laser engraving machine to mark zinc metal surfaces.
Micro Industrial Solutions provides the most extensive range of dot marking and engraving equipment in the market, with solutions that integrate easily into your production processes. We take pleasure in offering a wide range of trustworthy, cost-effective solutions that are powered by intuitive, powerful software and backed by industry-leading training and support. We have the competence to help you with portable handheld dot peen marking machines. You’ve come to the right spot if you’re searching for a Dot Peen Marking Machine Manufacturers in India that will take the time to understand your application, match you with the finest technology for the job, and help you from installation through training and ongoing tech support. Contact us for a free quote now.
Product Features
- A high-resolution camera with a fast graphics capture card.
- In coaxial placement, the camera follows the laser oscillator synchronously, allowing for synchronous product positioning, synchronous marking, high precision, and quick speed.
- Laser marking machine placement accuracy, marking objects randomly put.
- Reduce the expense of the customer’s positioning mould time.
- The machine will help shorten the client manufacturing process, increase production efficiency, decrease failure rates, and lower costs.
Product Details
Technical Details
Type | Intergraded style |
Power | 20W /30W |

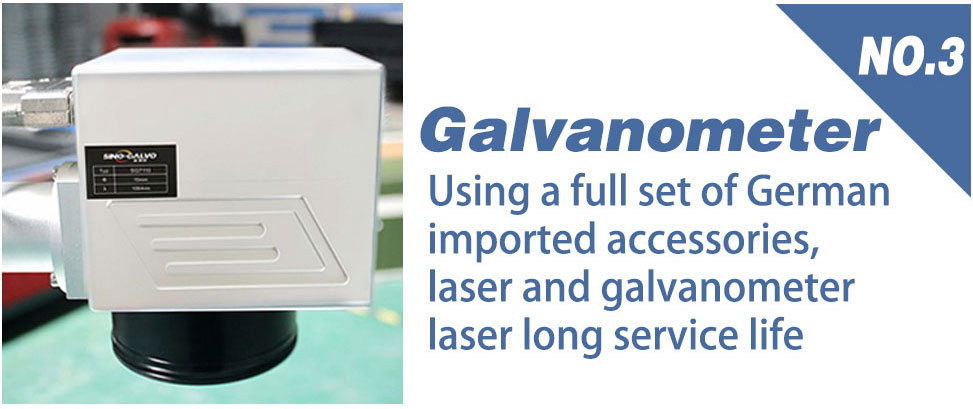

Galvanometer | Sino |
Main board | Beijing JCZ |
Software | EZCAD 2.14.10 |

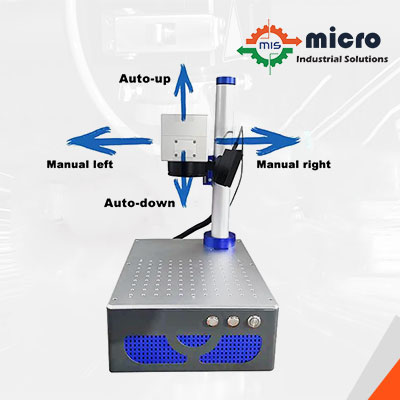

Auto focus | Yes |

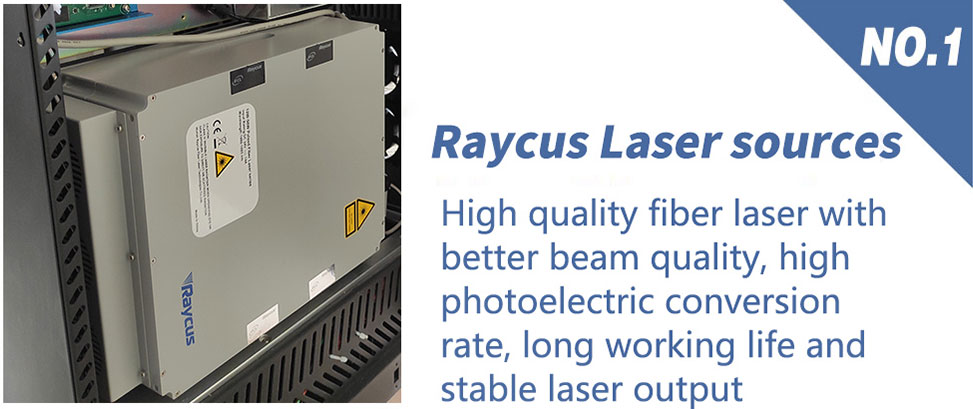

Laser Brand | Raycus (lian pin brand) |
Marking Area | 110mm*110mm |
Optional Marking Area | 110mm*110mm/150mm*150mm/200mm*200mm |
Marking Depth | ≤0.5mm |
Marking Speed | 7000mm/s |
Minimum Line Width | 0.012mm |
Minimum Character | 0.15mm |
Repeated Precision | ±0.003mm |
Life-span of Fiber Laser Module | 100 000hours |
Beam Quality | M2 <1.5 |
Focus Spot Diameter | <0.01mm |
Output Power of Laser | 10%~100% continuously to be adjusted |
System Operation Environment | Windows XP / W7–32/64bits / W8–32/64bits |
Cooling Mode | Air cooling–Built-in |
Temperature of Operation Environment | 15℃~35℃ |
Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
Power Requirement | <400W |
Communication Interface | USB |
Package Dimension | 720mm x 460mm x 600mm |
Gross weight | 60KG |
Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation |
